Enterprise Scheduling - Task Gantt Features

Modified on Tue, 23 Sep at 4:23 PM

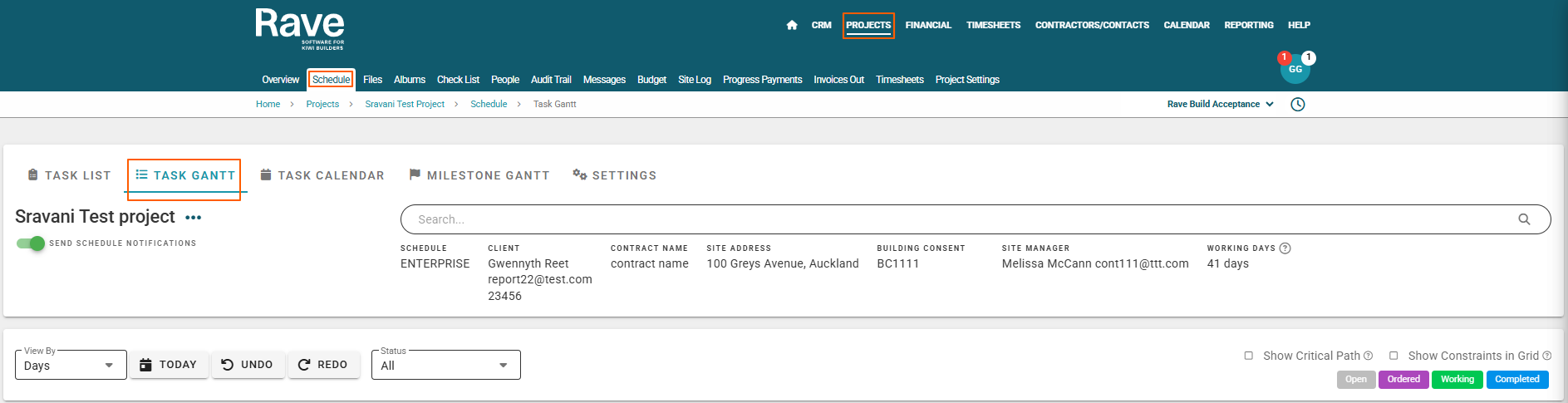

Enterprise scheduling opens up a range of handy scheduling features that are best seen via the ‘Task Gantt’ view of our schedule.  With our project set to enterprise mode, we can see that there are a few changes on the screen.

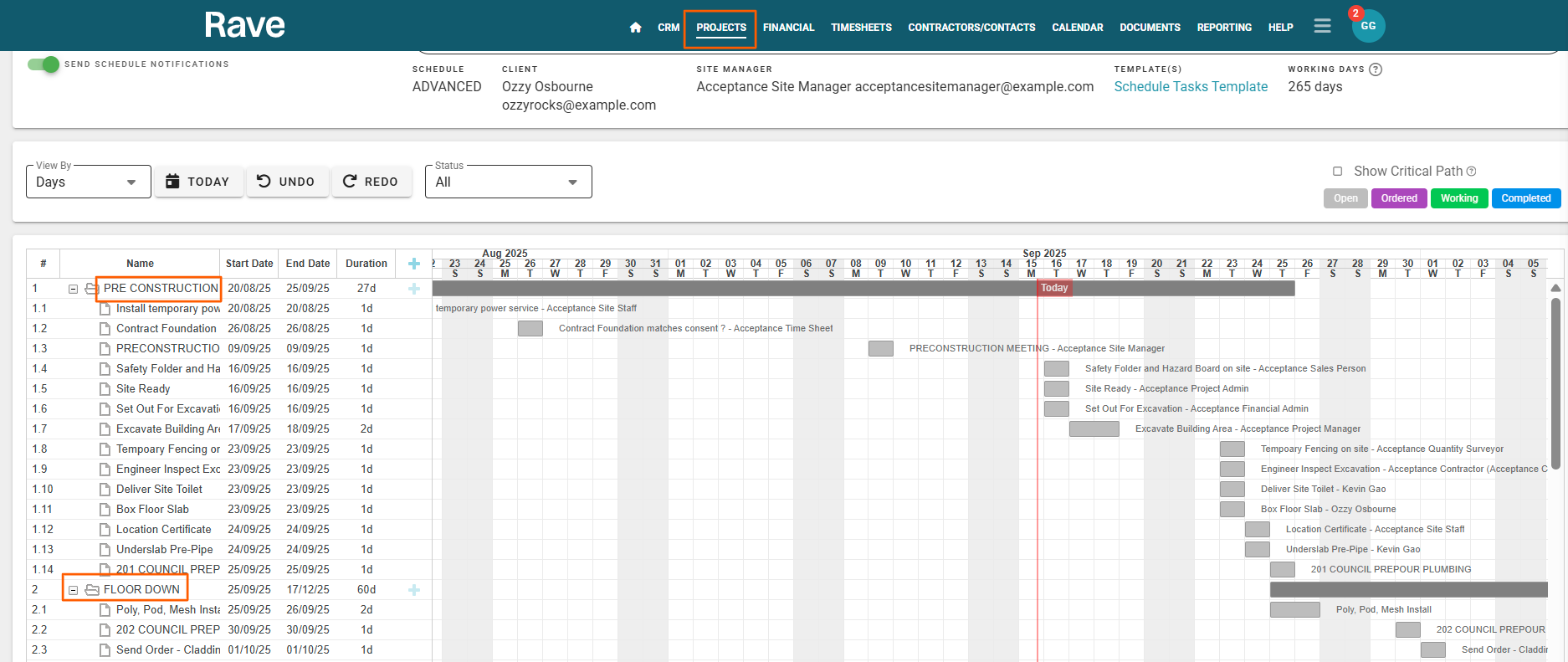

1. Milestones (as well as tasks) are visible on the Gantt view with Enterprise scheduling.




2. Any colour-coded milestones are more clearly seen on the Enterprise schedule Gantt view.


NOTE: We cannot colour-code tasks, as this would disrupt the task status views.




3. We can click and drag milestones via Enterprise's gantt view - this also moves their associated tasks



4. We can add milestones and tasks via Enterprise's gantt view

  • Add milestones by clicking on the ‘+' icon to the right of the Duration column header
  • Add a task by clicking on the '+' icon to the right of the duration of the milestones description

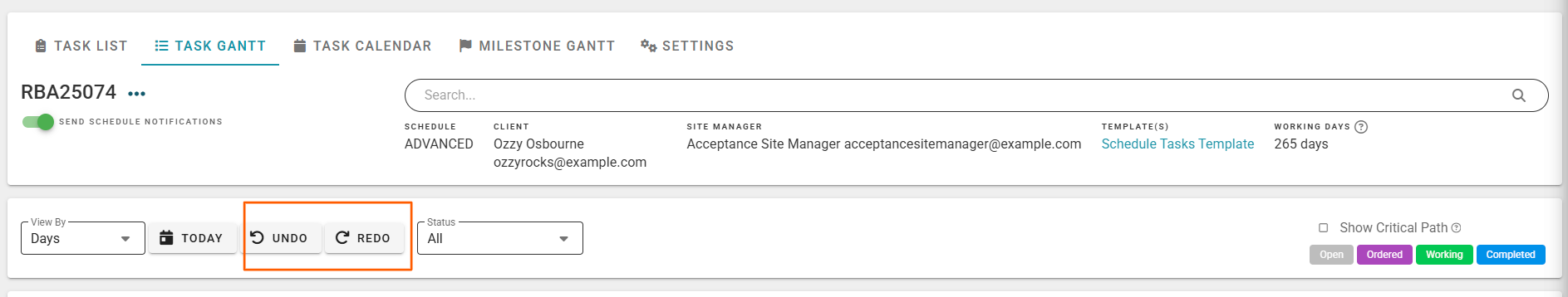

5. Click and drag Undo/Redo buttons | Filter By Status


The Task Gantt in Enterprise Scheduling has these handy undo/redo buttons, allowing you to undo any click and drag milestone or task changes - that is in addition to the rollback function available with our classic scheduling.

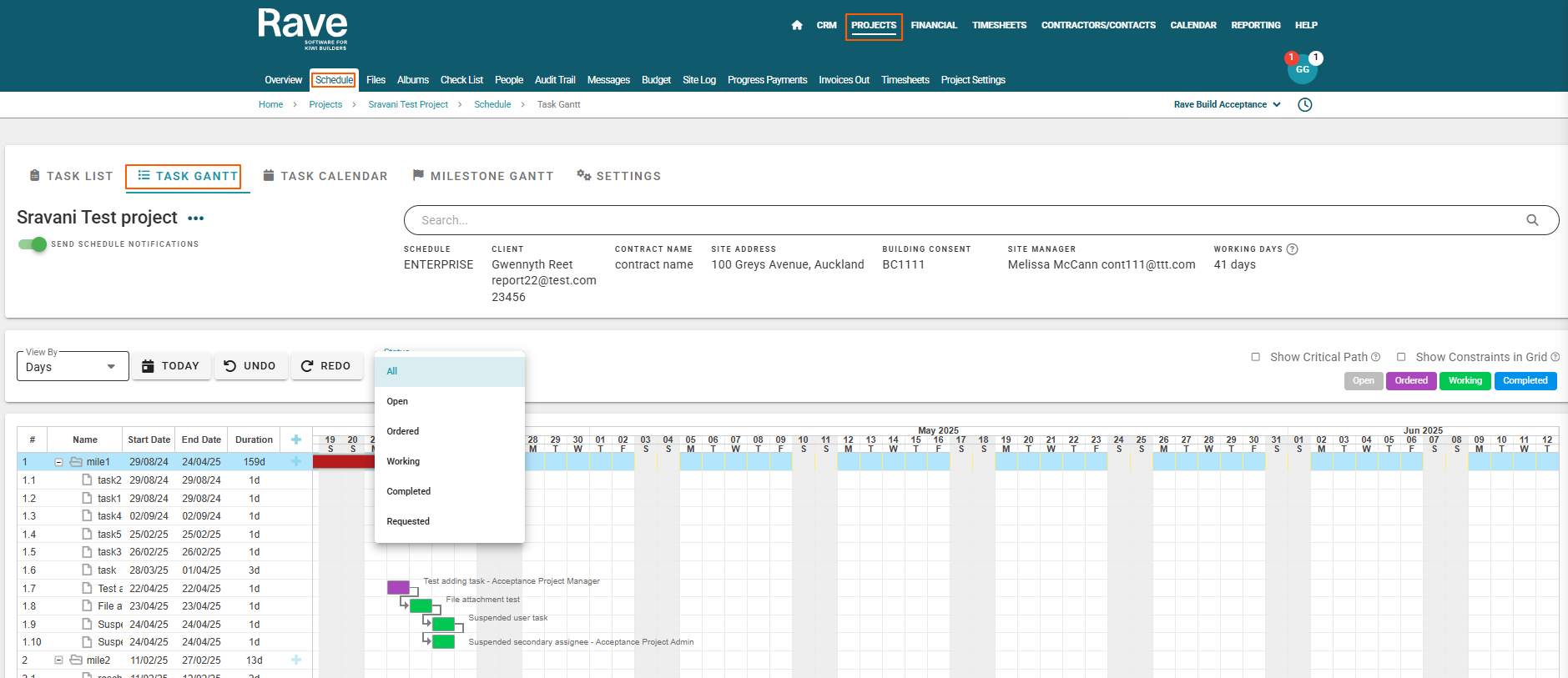

The Filter by Status button is also a added handy feature.


NOTE: We can undo up to 10 steps backward/forwards. However, refreshing/or moving off the page resets the memory of the undo/redo buttons.

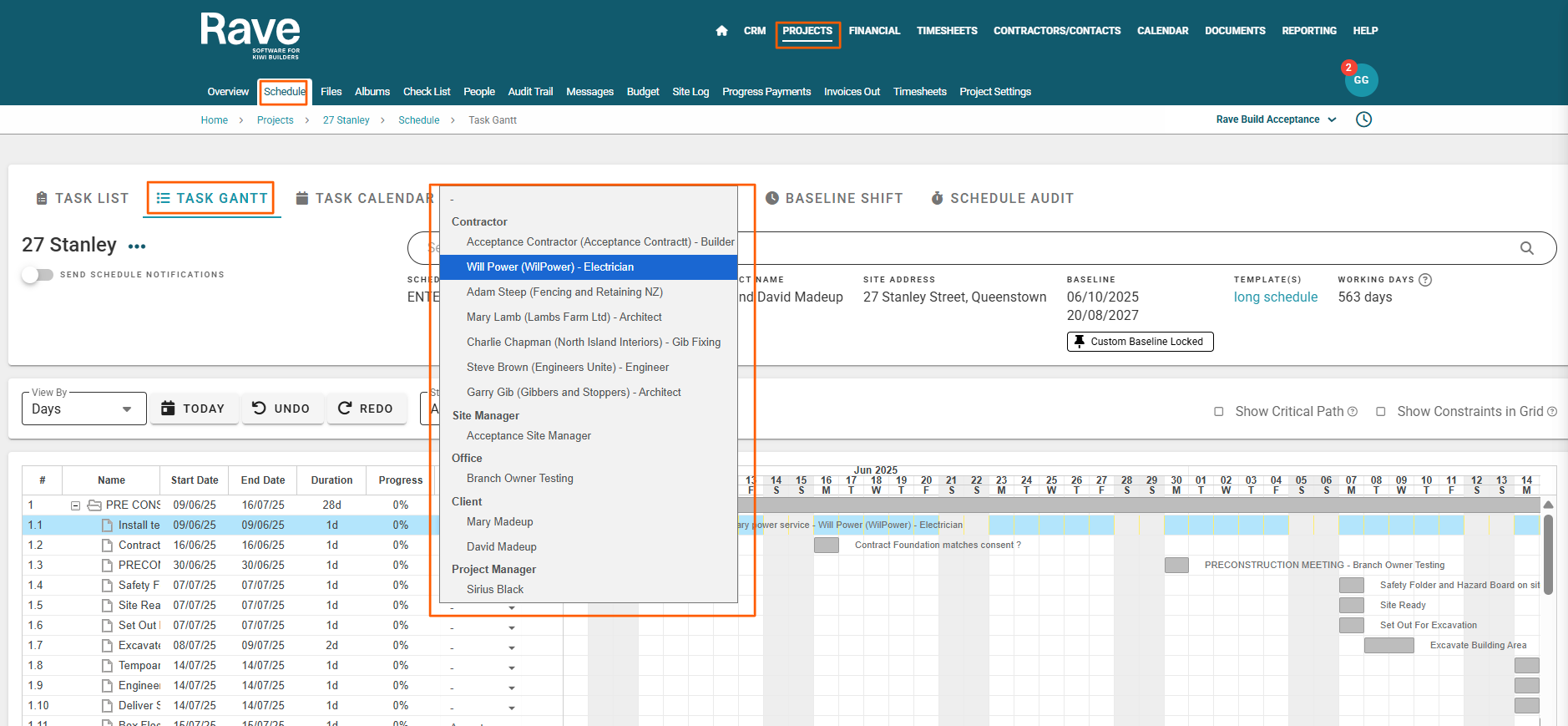

6. Task Assignee

Your Task Assignee can be updated in your Gantt chart.  By clicking on the assignee will bring a pop up box with all the contractors and staff in this project. You can change the assignee at a click of a button.
