Branches with the Enterprise Scheduling module, have the ability to customise their project's task colour display when viewing their schedule by the Task List, Task Gantt, and Task Calendar views.  Branch, Site Manager, and Site Staff users, will see the customised colours, while contractors and clients (with access to see the schedule tasks) will see the standard task status colours of grey, purple, green and blue.

To set up Project Specific Custom Task Colouring

Setting up custom task colouring is easy:

1. Go to the project's Schedule Settings screen - by clicking on the Settings button to the right of the Milestone Gantt View
2. Scroll down to the Custom Task Colouring section
3. Tick all of the Task Views that you would like to turn custom task colouring on for



To set up Branch Level Custom Task Colouring

Setting up custom task colouring is easy:

1. Click on Site/Build (Projects)
2. Go to the Build Overview tab and scroll to the Settings screen - click on settings
3. Scroll down to the Custom Task Colouring section
4. Tick all of the Task Views that you would like to turn custom task colouring on for the entire branch.

Please note this is for ALL projects in the branch. To change specfic projects please go back to step one above

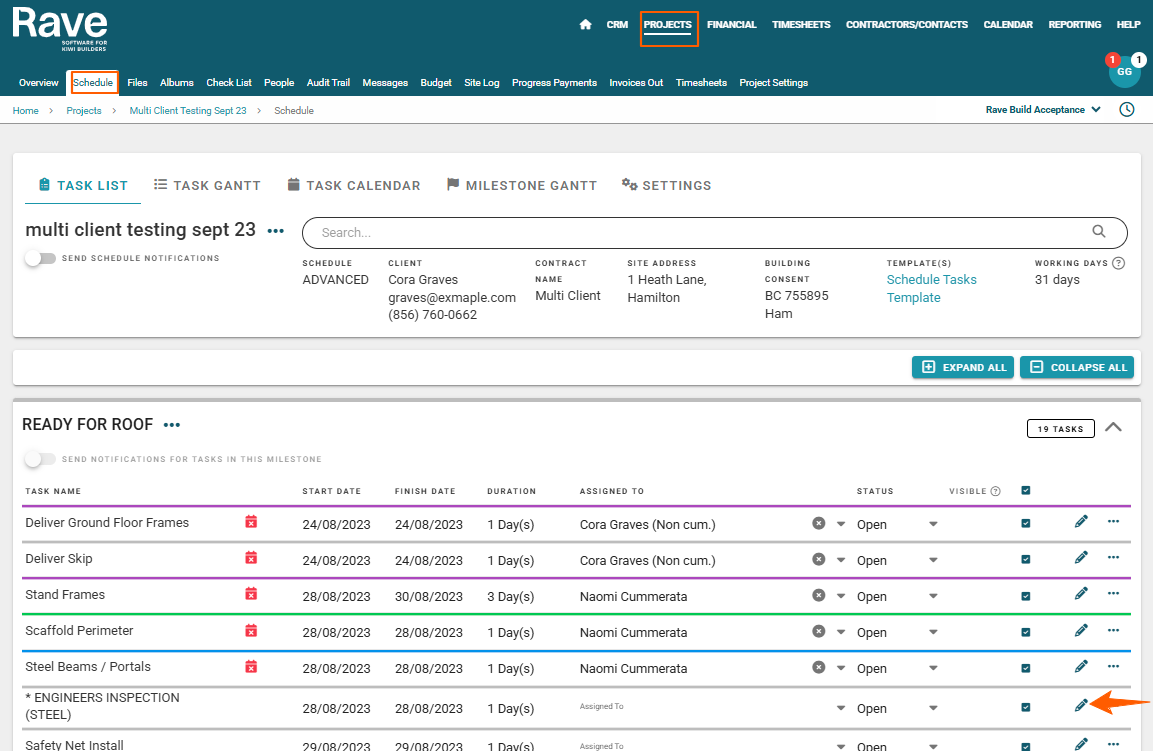

1. Access the Task Details pop-up

   - by clicking on the pencil edit icon of the Task List view
   - or by double clicking on the task description, or gantt task block.


2. Then in the Colour section, enter the 7 digit Hex Colour Code i.e. #AB47BC (purple), or click on the colour block to the right

   From the colour palette pop-up, you can
   - select your colour from the colour palette screen, or colour palette slide
   - enter the 7 digit Hex Colour Code i.e. #AB47BC (purple)
   - select one of our task status preset colours (grey, purple, green, or blue)
   - select one of the other present colours


3. Once you've made your colour selection - click the Task Details 'Save' button to confirm

   This will update the task colour for branch users

   - In the Task List view - this will add the coloured line above the task
   - In the Task Gantt and Task Calendar views - this will change the task block colour


   NOTE: Contractors and clients with access to the schedule, will see the standard task status colours of grey, purple, green and blue.



Once you have set up your custom colouring options you can then use the Sample CSV file option to upload your schedules via csv with custom colouring included.
